INTRODUCTION

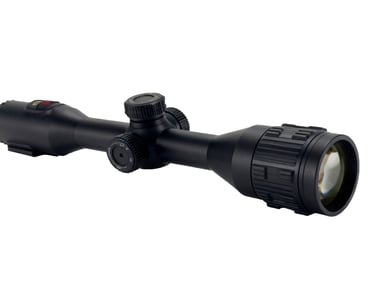

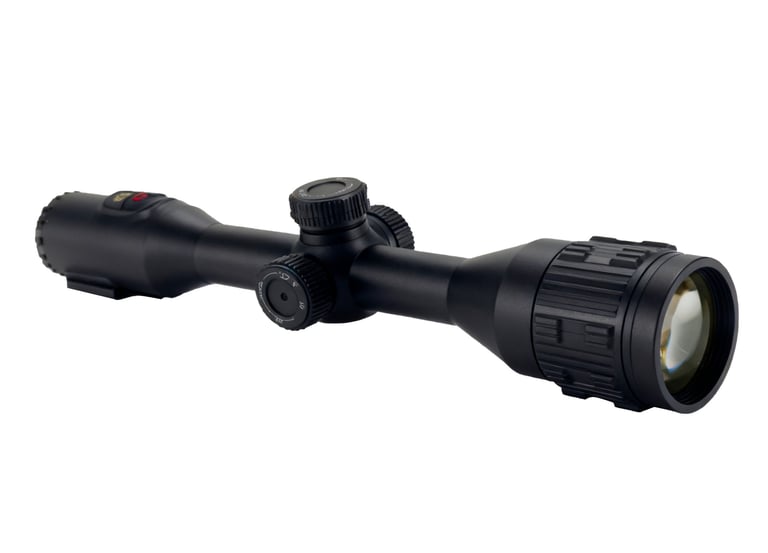

The Conquer series is a cutting-edge thermal sight engineered for precision targeting in extreme environments. Combining advanced thermal imaging technology with user-centric design, 30mm standard tube size and quick detach mount. Equipped with 640@12μm and 384@12μm high-performance infrared detectors, it delivers exceptional image clarity and real-time responsiveness, making it ideal for outdoor and hunting applications.

Product name

C335

C350

C635

C650

Sensor

Type

VOx Uncooled sensor, 8 - 14μm

Resolution

384×288@12μm

640×512@12μm

NETD

≤20mK(@25°C,F#1.0,25Hz)

Frame rate

50HZ

Lens

Objective lens

35mm/F1.0

35mm/F1.0

50mm/F1.0

50mm/F1.0

Filed of View (±0.3°)

12.5°×10°

12.5°×10°

8.7°×7°

8.7°×7°

Magnification

2.69× - 21.52×

3.85× - 30.8×

1.61× - 12.88×

2.31× - 18.48×

Eye relief

60 mm

Diopter

-5~+5

Detection range

1800

1800

2600

2600

Display

Display type

0.39 inch, OLED

Display resolution

1024×768

Hardware

WiFi

Built in WiFi

Interface

USB-C

Others

Microphone, Bluetooth

System

Tube diameter

30 mm

Recording function

Photo/Video(Audio Recording supported)

Memory Capacity

32 G

Power

Battery type

18650×2 batteries(built-in) and CR123

Operation time

10 hours

Environmental

Operating temp.

-20℃~+50℃

Shock

1000g

Encapsulation

IP67

Weight

1100g

Dimensions

L367mm*W83mm*H75mm
