INTRODUCTION

The Ares series is an advanced miniature electro-optical device with a variety of functions, including handheld, helmet mounted, weapon mounted and clip on mounted. Weighing less than 360 grams, the Ares series can be held in the palm of your hand and can be used with a helmet mount or mounted on a rifle as a standalone weapon sight. The product has a variety of features: such as built-in video recording, built-in video playback and a high-definition AMOLED display. The Ares series is also equipped with the latest high-performance 384@12μm and 640@12μm sensor technology, and the imaging level is at the top level in the industry.

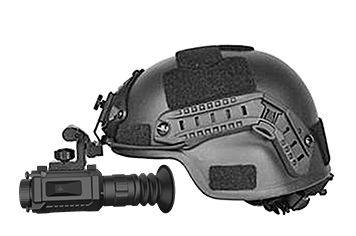

Head-Mounted

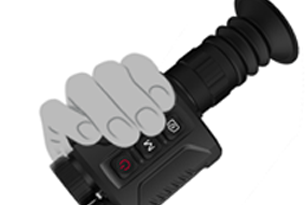

Handheld

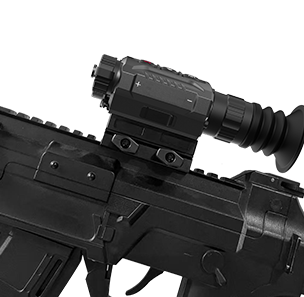

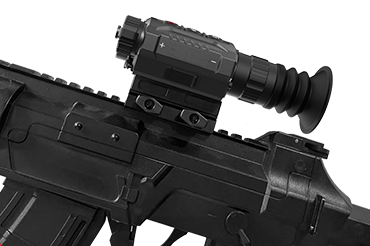

Thermal Sight

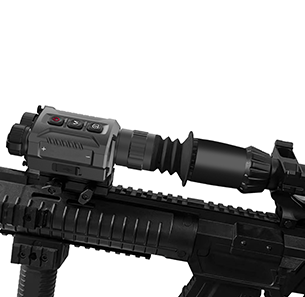

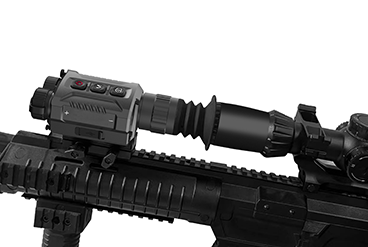

Clip-On

Product name

A325

A625

Sensor

Type

VOx Uncooled sensor, 8 - 14μm

Resolution

384×288@12μm

640×512@12μm

NETD

≤20mK(@25°C,F#1.0,25Hz)

Frame rate

50HZ

Lens

Objective lens

25mm/F1.0

Filed of View (±0.3°)

17.2°×13.7°

10.5°×7.9°

Magnification

2.4× - 19.2

1.44× - 11.52×

Eye relief

35 mm

Diopter

-4~+4

Detection range

1200

Display

Display type

0.39 inch, OLED

Display resolution

1024×768

Hardware

WiFi

Y

Interface

USB-C

System

Recording function

Photo/Video(Audio Recording supported)

Memory Capacity

64 G

Power

Battery type

1×18650 Battery

Operation time

6 hours

Environmental

Operating temp.

-20℃~+50℃

Shock

1000g

Encapsulation

IP67

Weight

360g

Dimensions

L152mm*W67mm*H53mm
