RD112
Model
Product Type
Reticle pattern
Reticle type
Reticle Color
Light source
Hole position
Field of view dimensions
Glass
Magnifying power
Parallax
Parallax setting
Click value
RD112
Closed red dot
Single Dot 3moa / Dot 2moa + Circle 40moa
Red light/Green light
High-efficiency Power-saving OLED
RMSc
21x16mm
Doublet Glass
1X
≤2MOA
33yds
1click=1moa

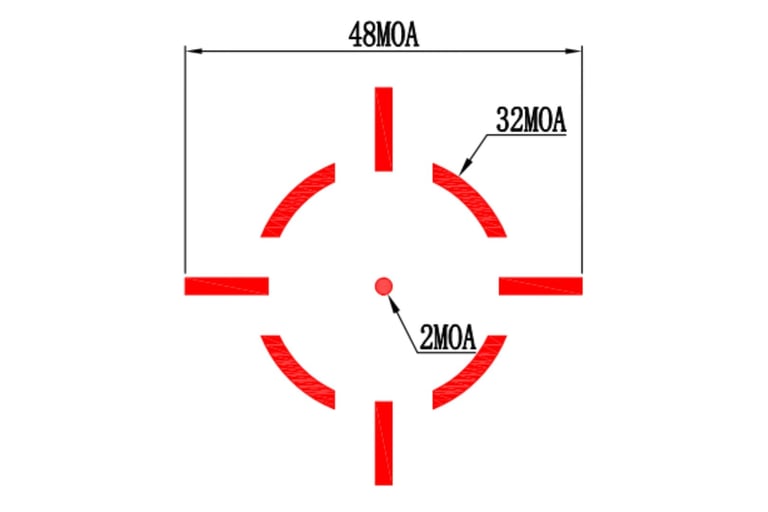

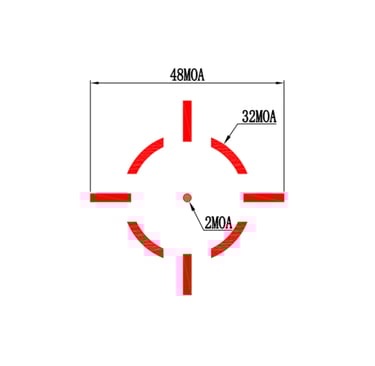

Reticle Size
Regulation range
≥80MOA (one-sided ≥40MOA)
Power supply method
Batteries/Batteries and Solar Energy
Lighting function settings
1. Two power supply modes (battery power supply mode, solar power supply mode).
2. At the same time, short press the + key and the - key to switch the power supply mode (when entering the solar power supply mode, the LED flashes quickly 3 times, and when entering the battery power supply mode, the LED flashes quickly 2 times.

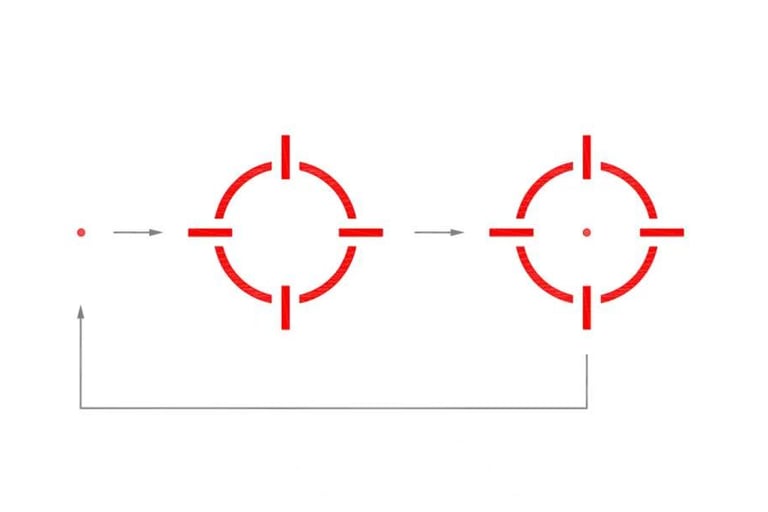

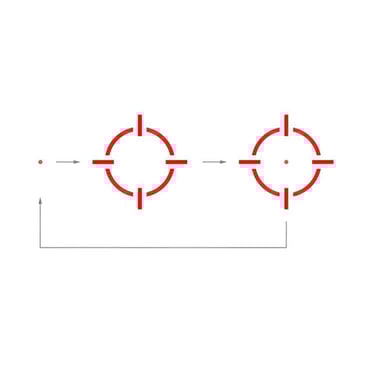

3. Short press the + key to turn on the power, long press the - key for 3 seconds to turn off the power, long press the + key for 3 seconds to switch the pattern,).
4. Battery-powered mode: a total of 10 brightness (1 gears and 2 gears night vision gears). Press the + key to increase the brightness. When adjusted to the highest brightness, the current pattern flashes 3 times in 2.5~3 seconds; press the - key to reduce the brightness.
5. The micro-switch micro-motion time is 8±0.5 minutes, that is, it will automatically hibernate after 8±0.5 minutes of rest.
Center height
(Excluding 21mm base): 16.5mm
(Including 21mm base): 21.5mm
Charging
None
Battery
CR1632, take the battery on the right side
Battery life
Standby 50000h
Mirror material
CNC machining aluminum alloy 6061
Mirror surface treatment
Anodising
Mirror surface color
Matte black
Waterproof
IPX7
Impact resistance
1500G
Operating temperature
-20℃ ~ 40℃
Storage temperature
-30℃ ~ 50℃
Product dimensions
40.8x31.1x24.8mm (excluding 21mm base)
(LxWxH)
Product weight
(g)
Reference Unit Price
(FOB Chongqing)
Single point 200, variable point 240
40.8x31.1x37.4mm (including 21mm base)
40.1g (excluding 21mm base)
63.3g (including 21mm base)
