Model

Product Type

Reticle pattern

Reticle type

Reticle Color

Light source

Hole position

Field of view dimensions

Glass

Magnifying power

Parallax

Parallax setting

Click value

RD17

Open Red Dot

Single Dot 3moa / Dot 2moa + Circle 40moa

Red light/Green light

High-efficiency Power-saving OLED

RMR

24x18mm

Multi - Coated High - Transmittance Glass

1X

≤2MOA

33yds

1click=1moa

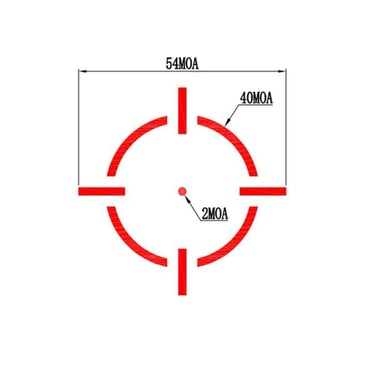

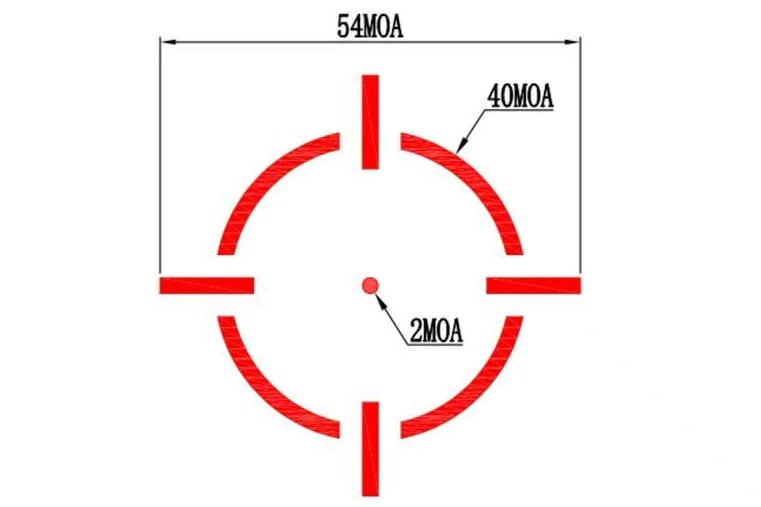

Reticle Size

Regulation range

≥90MOA (one side ≥45MOA)

Power supply method

Battery

Lighting function settings

Center height

(Excluding 21mm base): 16.5mm

(Including 21mm base): 21.5mm

Charging

None

Battery

Take the battery CR1632 at the top

Battery life

Standby 50000h

Mirror material

CNC machining aluminum alloy 6061

1. Short-press the "+" or "-" key (press duration < 0.5 seconds) to power on; long-press the "-" key for 2±0.5 seconds to power off. After each manual power-on, the brightness defaults to Level 6, and the pattern remains the one prior to shutdown.

2. Short-press the "+" or "-" key (press duration < 0.5 seconds) to increase or decrease brightness, with a total of 11 brightness levels available.

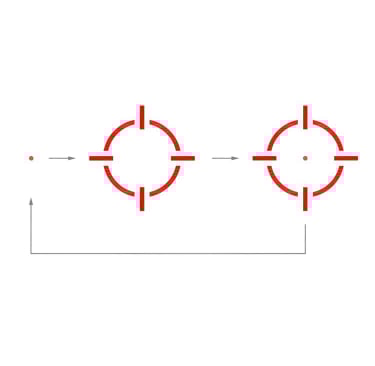

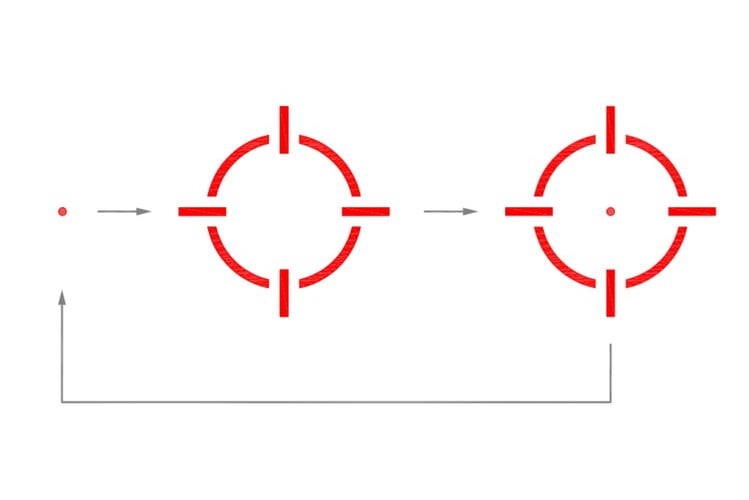

3. Long-press the "+" key for 2±0.5 seconds to trigger cyclic pattern switching (refer to the figure below for the pattern sequence).

4. When the maximum brightness is reached, the current pattern will flash 3 times within 2.5~3 seconds.

5. The micro-switch activation time is 8±0.5 minutes, which means the device will automatically enter sleep standby mode after being stationary for 8±0.5 minutes.

Mirror surface treatment

Anodising

Mirror surface color

Matte black

Waterproof

IPX7

Impact resistance

1500G

Operating temperature

-20℃ ~ 50℃

Storage temperature

-30℃ ~ 60℃

Product dimensions

(LxWxH)

Product weight

(g)

Reference Unit Price

(FOB Chongqing)

Single point 140, variable point 180
