Model

Product Type

Reticle pattern

Reticle type

Reticle Color

Light source

Hole position

Field of view dimensions

Glass

Magnifying power

Parallax

Parallax setting

Click value

RD211

Closed red dot

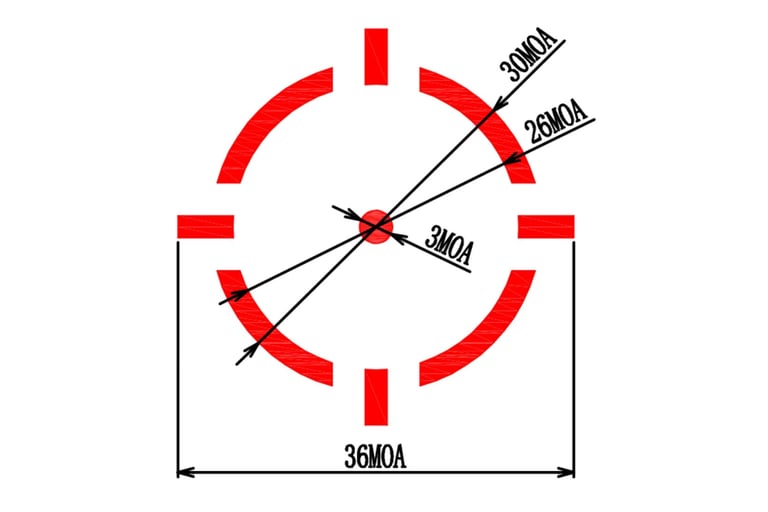

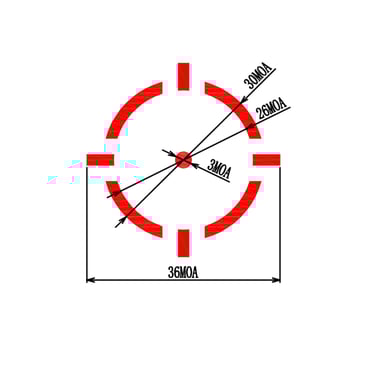

Single Dot 3MOA, Circle 30MOA, Cross 36MOA

Red light/Green light

OLED

18x18

Laminated glass

±2MOA

±2MOA

33yds

1click=1moa

Reticle Size

Regulation range

≥90MOA (one side ≥45MOA)

Power supply method

Battery 1632

Lighting function settings

Center height

Charging

Battery

CR1632, take the battery on the right side

Battery life

Standby 50000h

Mirror material

CNC machining aluminum alloy 6061

1. Short-press the "+" or "-" key (press duration < 0.5 seconds) to power on; long-press the "-" key for 2±0.5 seconds to power off. After each manual power-on, the brightness defaults to Level 6, and the pattern remains the one prior to shutdown.

2. Short-press the "+" or "-" key (press duration < 0.5 seconds) to increase or decrease brightness, with a total of 11 brightness levels available.

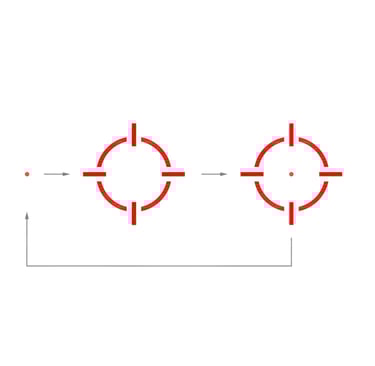

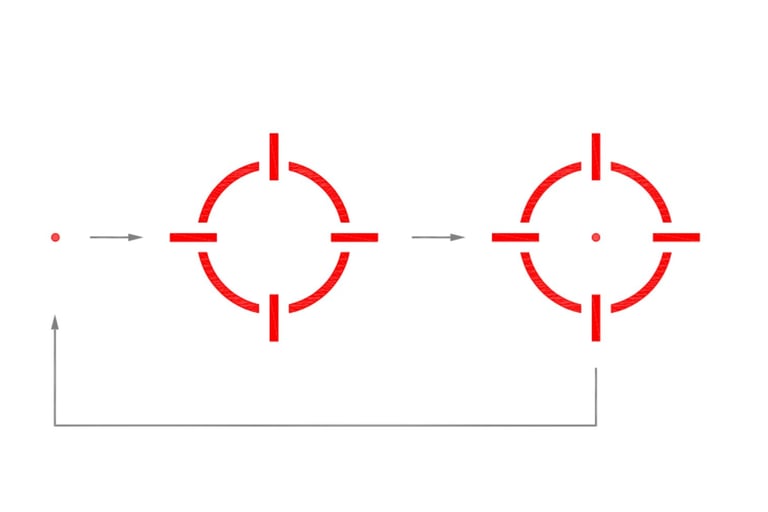

3. Long-press the "+" key for 2±0.5 seconds to trigger cyclic pattern switching (refer to the figure below for the pattern sequence).

4. When the maximum brightness is reached, the current pattern will flash 3 times within 2.5~3 seconds.

5. The micro-switch activation time is 8±0.5 minutes, which means the device will automatically enter sleep standby mode after being stationary for 8±0.5 minutes.

Mirror surface treatment

Anodising

Mirror surface color

Matte black

Waterproof

IPX7

Impact resistance

1500G

Operating temperature

-20℃ ~ 40℃

Storage temperature

-30℃ ~ 50℃

Product dimensions

(LxWxH)

Product weight

(g)

Reference Unit Price

(FOB Chongqing)

Single point 245, variable point 270

21.6mm (short base)

14.2mm

36mm (high base)
