Model

Product Type

Reticle pattern

Reticle type

Reticle Color

Light source

Hole position

Field of view dimensions

Glass

Magnifying power

Parallax

Parallax setting

Click value

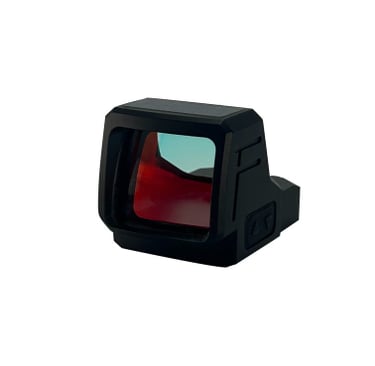

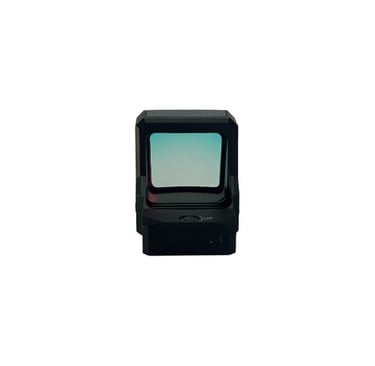

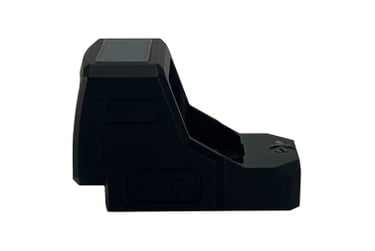

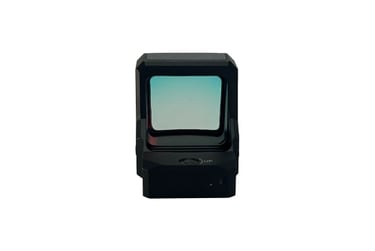

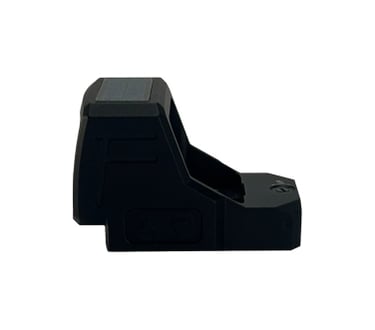

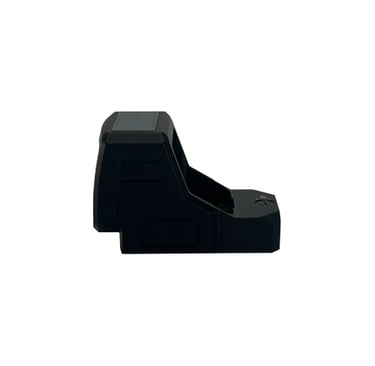

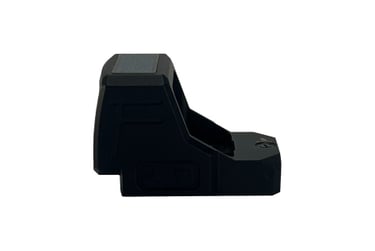

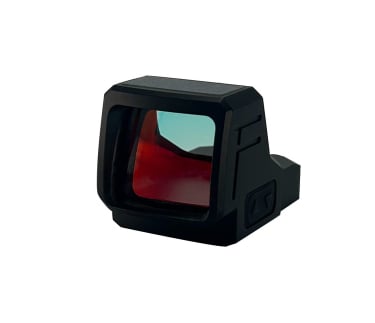

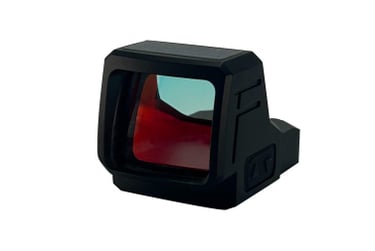

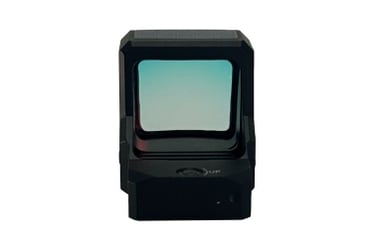

RD17S

Open Red Dot

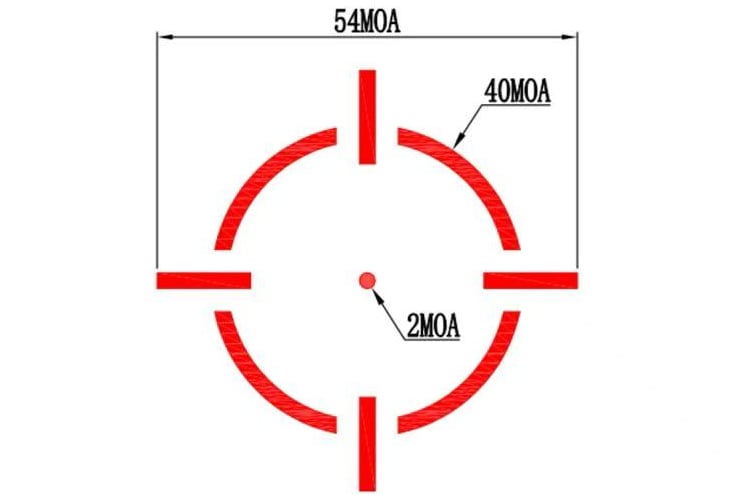

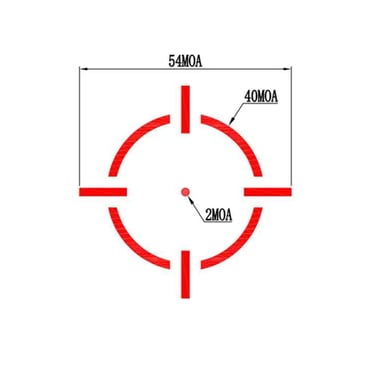

Single Dot 3moa / Dot 2moa + Circle 40moa

Red light/Green light

High-efficiency Power-saving OLED

RMR

26x22mm

Multi - Coated High - Transmittance Glass

1X

≤2MOA

33yds

1click=1moa

Reticle Size

Regulation range

≥90MOA (one side ≥45MOA)

Power supply method

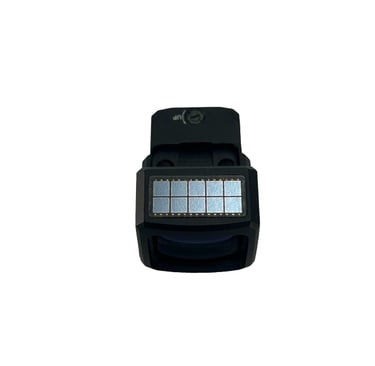

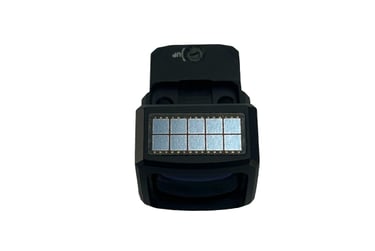

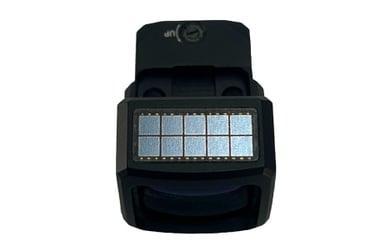

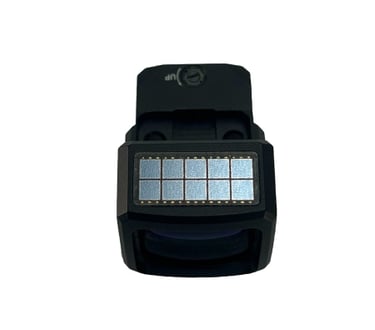

Battery & Solar

Lighting function settings

Center height

(Excluding 21mm base): 16.5mm

(Including 21mm base): 21.5mm

Charging

None

Battery

Right - side drawer - type battery CR1632

Battery life

Standby 50000h

Mirror material

CNC machining aluminum alloy 6061

1. Two power supply modes (battery - powered mode and solar - powered mode).

2. Press the "+" and "-" keys simultaneously to switch power supply modes (the LED flashes 3 times quickly when entering the solar - powered mode and flashes 2 times quickly when entering the battery - powered mode).

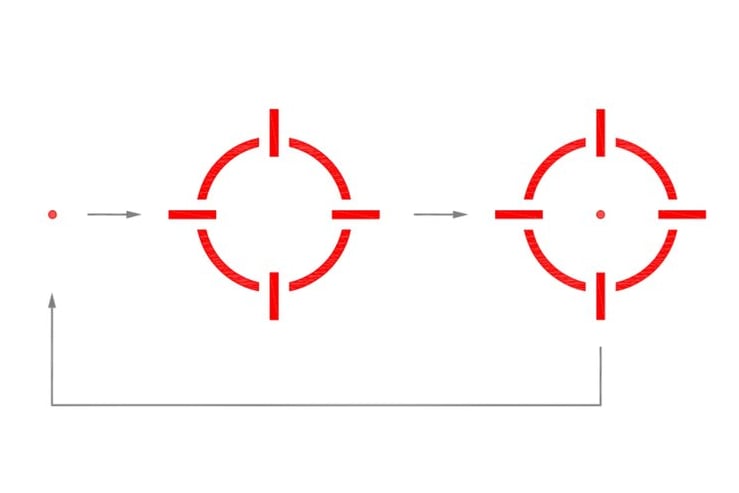

3. Press the "+" key briefly to turn on, press the "-" key for 3 seconds to turn off, and press the "+" key for 3 seconds to switch patterns.

4. In the battery - powered mode: There are 10 brightness levels (levels 1 and 2 are night - vision levels). Press the "+" key to increase the brightness. When the maximum brightness is reached, the current pattern flashes 3 times within 2.5 - 3 seconds. Press the "-" key to decrease the brightness.

5. The micro - switch activation time is 8±0.5 minutes, that is, it automatically goes into sleep standby after being stationary for 8±0.5 minutes.

Mirror surface treatment

Anodising

Mirror surface color

Matte black

Waterproof

IPX7

Impact resistance

1500G

Operating temperature

-20℃ ~ 50℃

Storage temperature

-30℃ ~ 60℃

Product dimensions

(LxWxH)

Product weight

(g)

Reference Unit Price

(FOB Chongqing)

Single Dot 165, Variable Dot 205

52.5x32.2x44.6mm (Including Picatinny base)
